ΠΡΟΕΝΙΣΧΥΤΗΣ ΠΙΚΑΠ LD SYSTEMS PPA-2

PPA 2

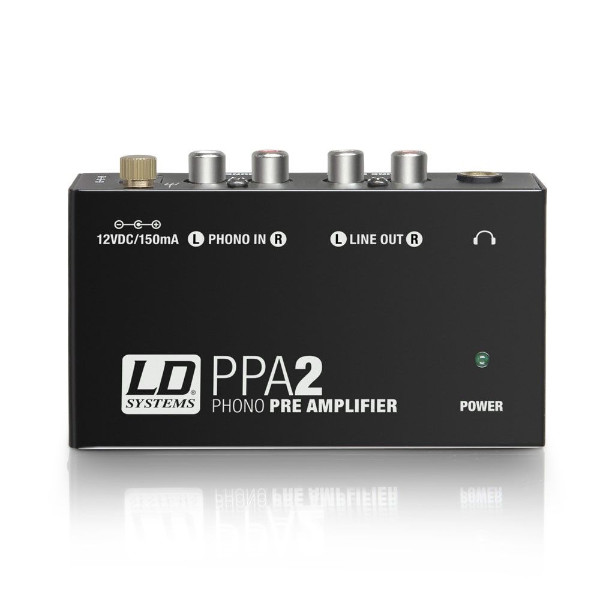

The LD Systems PPA 2 is a very compact analogue phono preamplifier, which equalises the extremely low output signal of conventional turntables to RIAA standards. It allows you to connect to devices without any phono input, such as mixers, PA power amplifiers or sound cards. The phono inputs are designed as RCA jacks, just like the line outputs; the PPA 2 also has a screw terminal for the ground conductor of the turntable and a 6.3 mm stereo jack for connecting a headset. The THD factor of the preamplifier is below 0.05% and the channel separation is -75 dB. The LD Systems PPA 2 uses a 12 V AC adapter; a bright LED indicates the power supply on the top of the sturdy metal chassis.

Product type

Other Studio and Recording Equipment

Type

Stereo Input / Stereo Output

Frequency response

RIAA Curve Hz

Signal-to-noise ratio

70 dB

THD

<0.05%

Crosstalk

-75 dB

Max. input level

-23.5 dBV

Max Output Level

+10 dBV

Input impedance (kOhms)

47 kOhm

Output impedance

50 Ohm(s)

Indicators

power LED

Inputs

1 x Phono Stereo

Input connectors

2 x RCA , Earth terminal

Line outputs

Headphones , Line Stereo

Line output connectors

2 x RCA , 6.3 mm TRS

Operating voltage

External Power Supply

Operating voltage

12 V DC

Current draw

0.15 A

Width

104 mm

Height

36 mm

Depth

67 mm

Weight

0,28 kg
