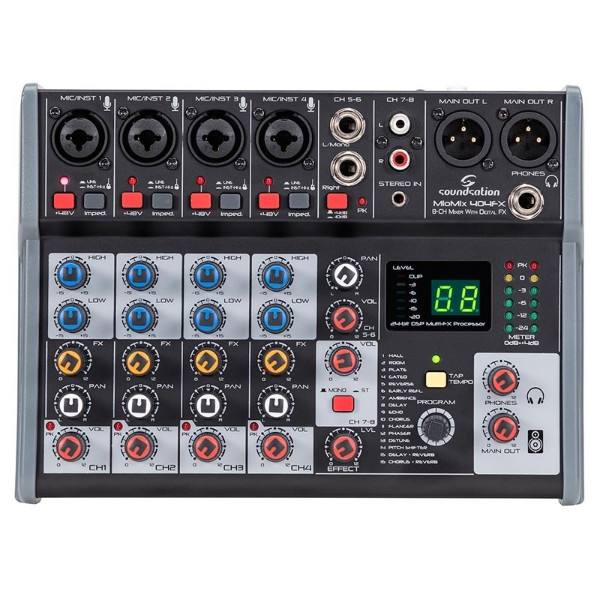

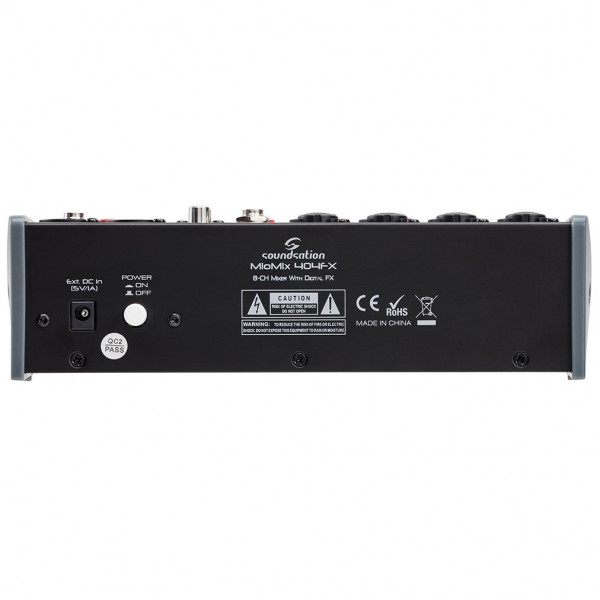

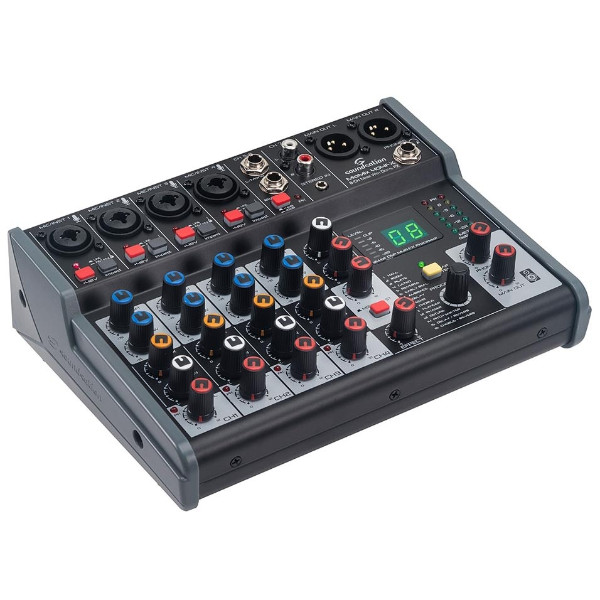

ΚΟΝΣΟΛΑ SOUNDSATION MIOMIX 404FX

SOUNDSATION MIOMIX 404FX
8-Channel Professional Audio Mixer with 24-bit Digital Multi-Effect


• 8 Total Channels
• 4 Mic/Line channels with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator
• 1 Stereo Line Channel with Ό? Jack inputs, +4/-10dB Pad Adapter and Peak Indicator
• 1 Stereo Line Channel with RCA and 1/8? Stereo Mini-Jack
• 2-Band EQ for channels 1 to 4
• 24-bit/48kHz 16-Preset Digital Effect with TAP-Tempo and up to 2 adjustable Parameters
• Headphone monitor out with level control
• XLR Main Outputs with Master Level Control
• Stereo 6-Led VU Meter Bar
• Rugged and Lightweight Metal Case for Maximum Flexibility and Portability

• Input Connections: Balanced XLR/Jack Combo (Channel 1-4), Balanced Ό? Jack (Channel 5-6), Stereo RCA, Stereo 1/8? Mini-Jack (Channel 7-8)
• Output Connection: Balanced XLR (Main Out L-R), Stereo Ό? Jack (Phones)
• Channel 1-4 Functions: +48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
• Channel 5-6 Functions: Impedance switch (+4/-10dB), Pan Position, Channel Volume, Peak Led Indicator
• Channel 7-8 Functions: Channel Volume, Mono/Stereo Switch
• Digital Effect: 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate
• Level Meter: 2x6 LED Meter
• Max Output Level: 3 Vrms
• Frequency Response: +/-0.5dB, 20Hz-20kHz
• Dynamic Range: 102dB
• THD+N @ 1kHz: =0.003%
• Stereo Crosstalk: 92dB
• Power Requirements: DC 5V, 0.5A
• Power Consumption: Max. 2.5W
• Size (WxDxH): 220 x 165 x 66 mm
• Packing Size (WxDxH): 345 x 208 x 87 mm
• Net Weight: 1.2kg
• Gross Weight: 1.5kg
